Welcome to my world of CAD design, where imagination and precision converge to shape the future. I'm Ronny, a passionate CAD designer dedicated to transforming concepts into tangible reality."
As the manufacturing Industry is evolving day by day the use to 3D models is more preffered over 2D files and we can help you convert your 2D files to accurate 3D models.
Looking to convert your conceptual ideas into reality? You are at the right place. We model your ideas into reality with the help of CAD softwares.
Welcome to my world of CAD design, where imagination and precision converge to shape the future. I'm Ronny, a passionate Product designer dedicated to transforming concepts into tangible reality.Armed with a Bachelor's degree in Mechanical Engineering and hands-on experience in manufacturing, I've honed my skills in optimizing processes and crafting designs that seamlessly bridge concept and creation. My proficiency in CAD software like SolidWorks and AutoCAD empowers me to enhance my skills in Machine design, visualize prototypes, and execute designs that harmonize with manufacturing processes.
We follow the following standards:
SERVICES WE PROVIDE
The initial part was manufactured using sand casting method which was time consuming and number of operations were more. So wew modified the part to manufacture using lathe and VMC and the no of operations were reduced and production rate increased by 20%

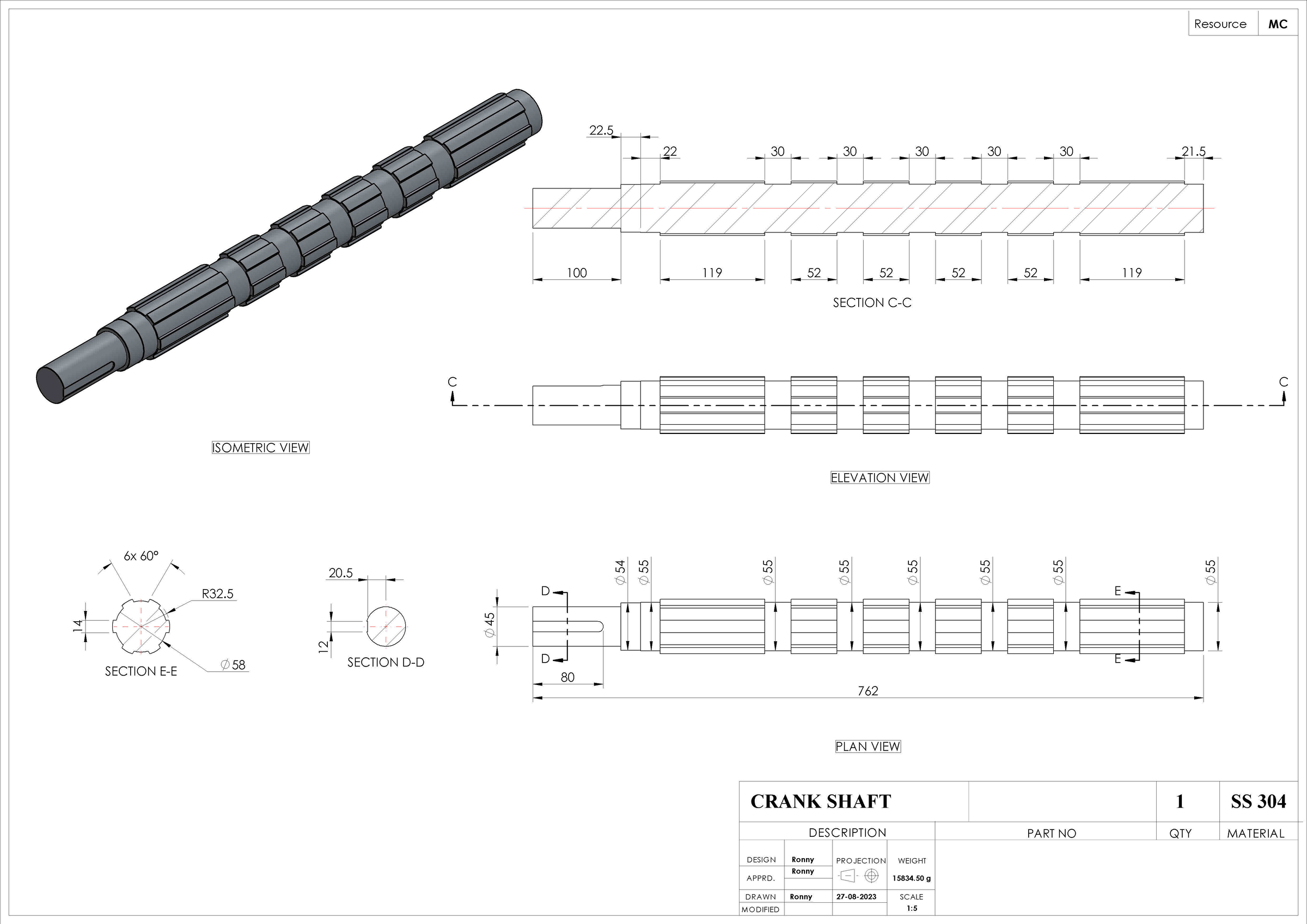

Design of shaft for power transmission as per ASME standards.
The design was modified as per the manufacturing process i.e CNC machining and the thread profiles were modified for better mating.
We provide installation and dis assembly video animation of mechanical components. The reference videos are uploded on the give link. CLick READ MORE for videos

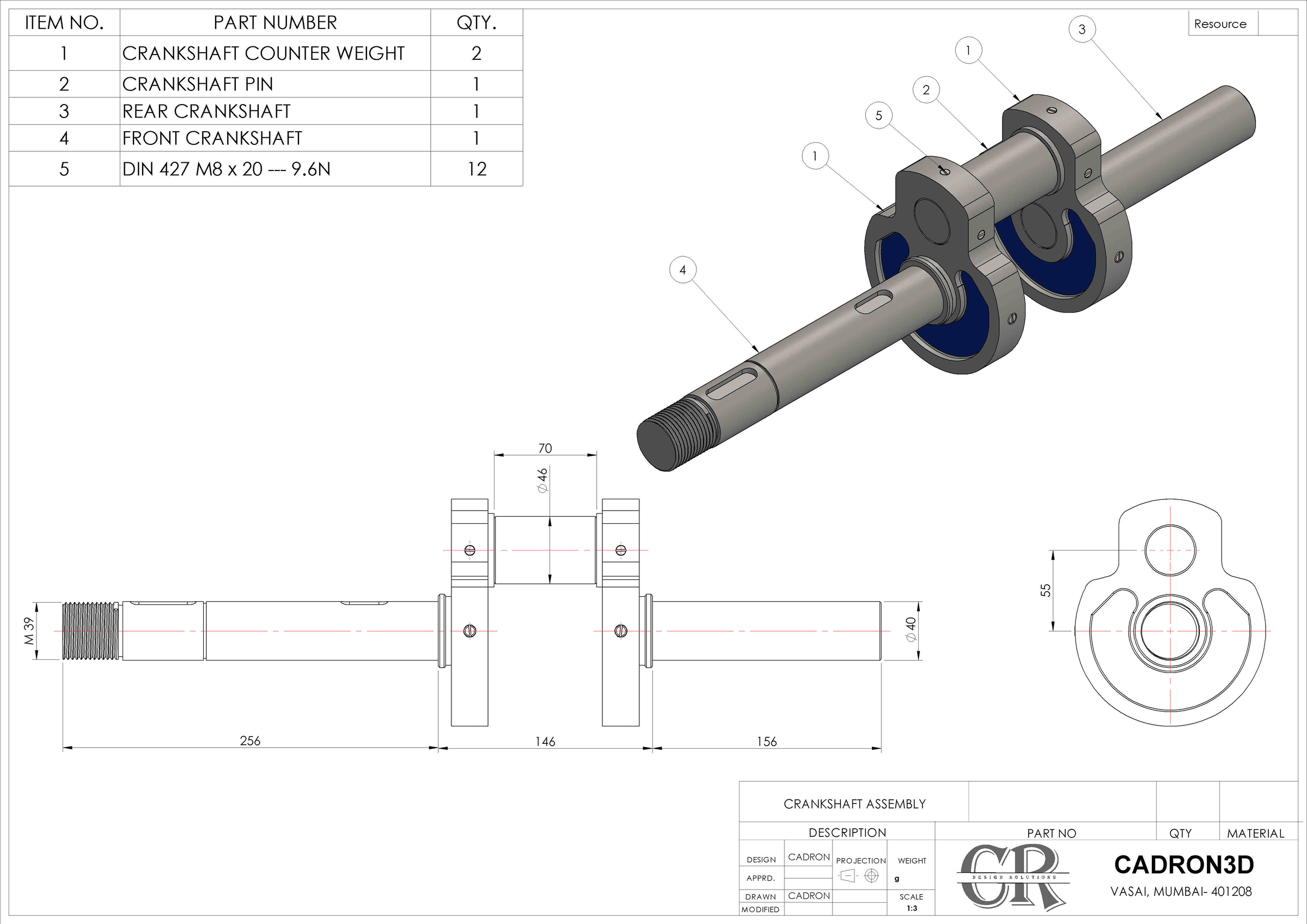

Assembly Drawing of Crankshaft in Solidworks. The Keyway design is done considering the ASME standard. Standardization was considered while designing the parts for easy dismentalling and ease of availability in case of maintenance.

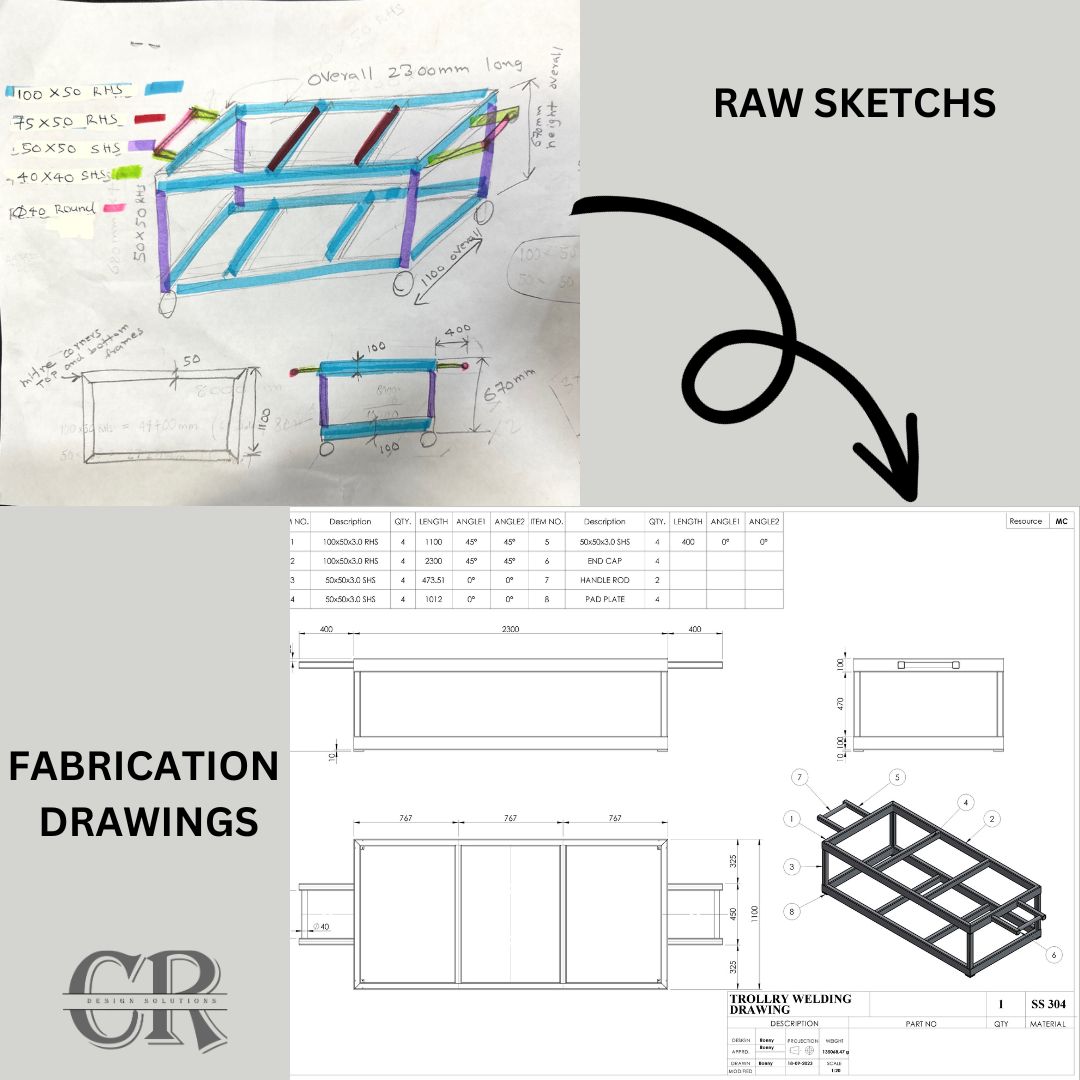

The client requested an trolley fabrication drawings, their main concern was the trolley should not exceed 3200 mm length(including handles), 1150 mm width and 850 mm ht including wheels Ht. The dynamic weight carrying capacity should be 90 kgs, so we selected heavy duty castor wheels from samart catalogue with adequate weight carrying capacity. Initially we produced an hand sketched drawings of the trolley while discussiong the requirements and furthur produced the Fabrication Drawings.

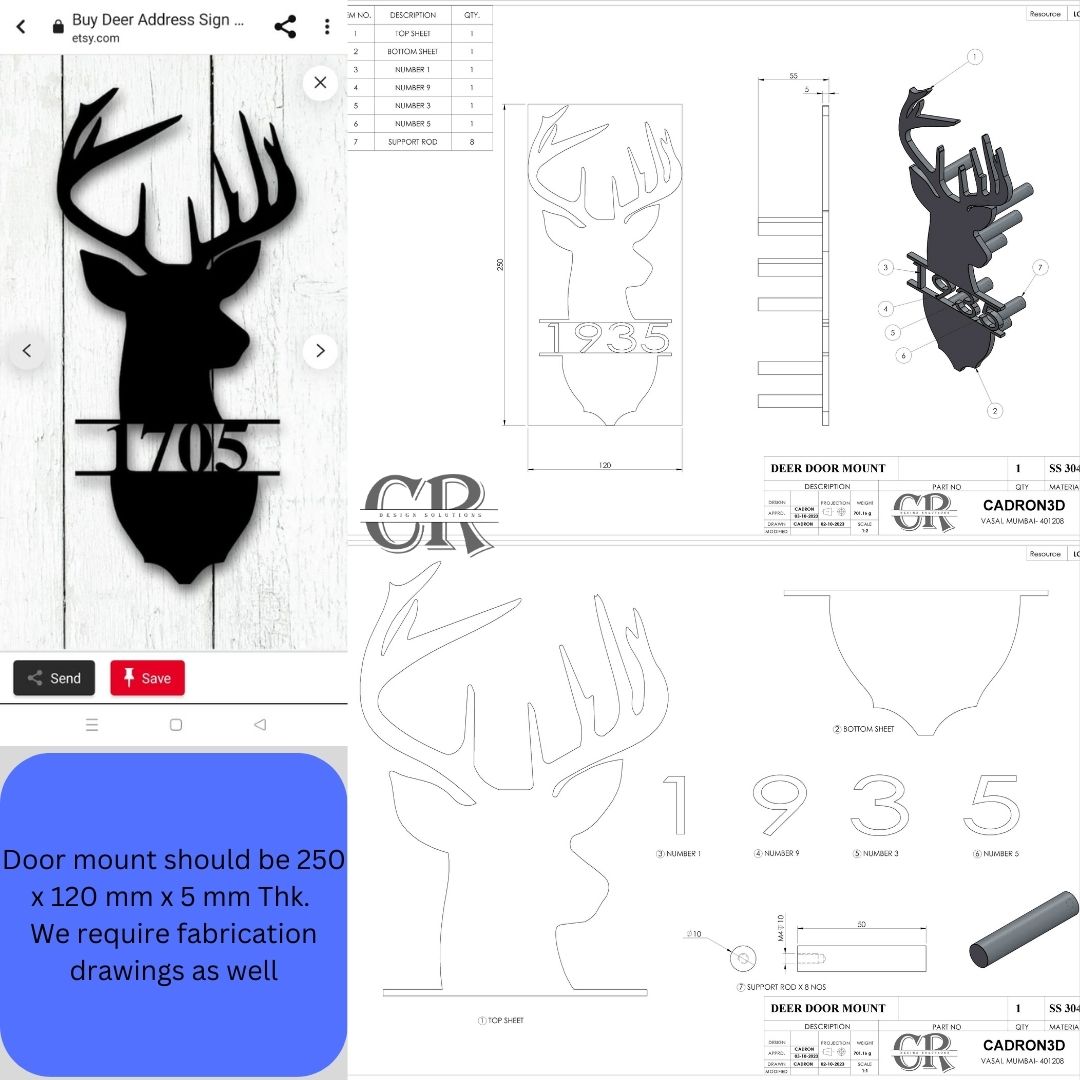

The client had a reference image and wanted an similar Door mount with an dimensional constraint of 250x120 mm and 5mm Thk.
The iniial layout was outsourced by laser cutting due to complex geometry. Furthur it was welded and painted using in house machineries of client. We provided Dxf file format for laser cutting.

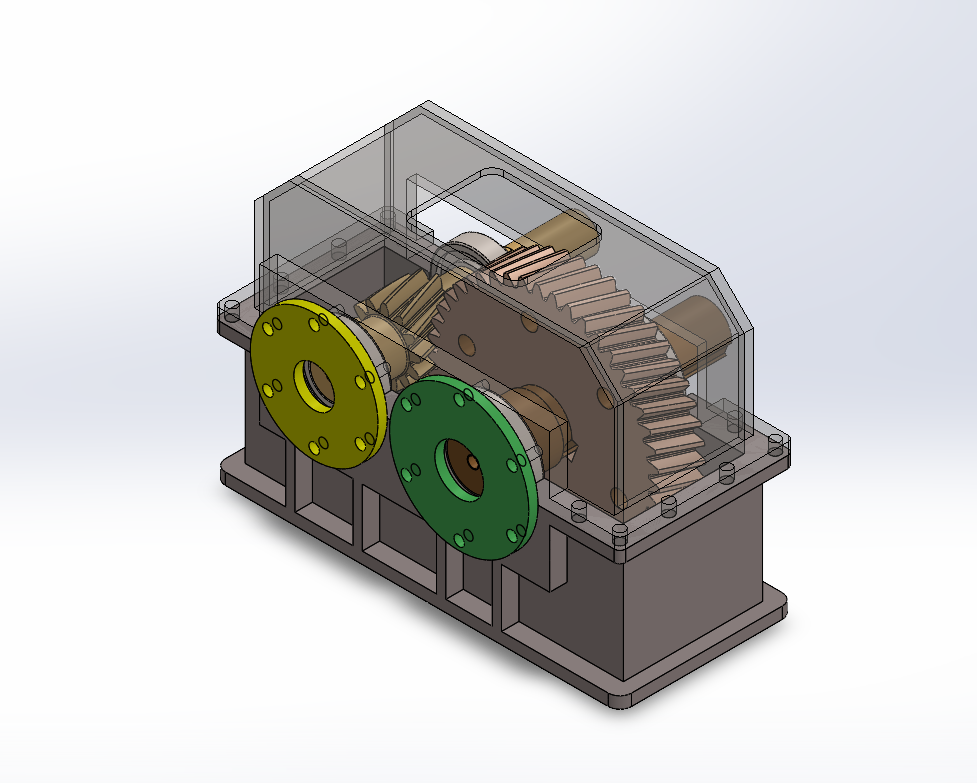

The output speed required was 96 rpm on regular running. So designed the Gearbox with reduction ratio of 15. Gearbox housing is been manufactured with sand casting and then furthur machining process is done via CNC machining.

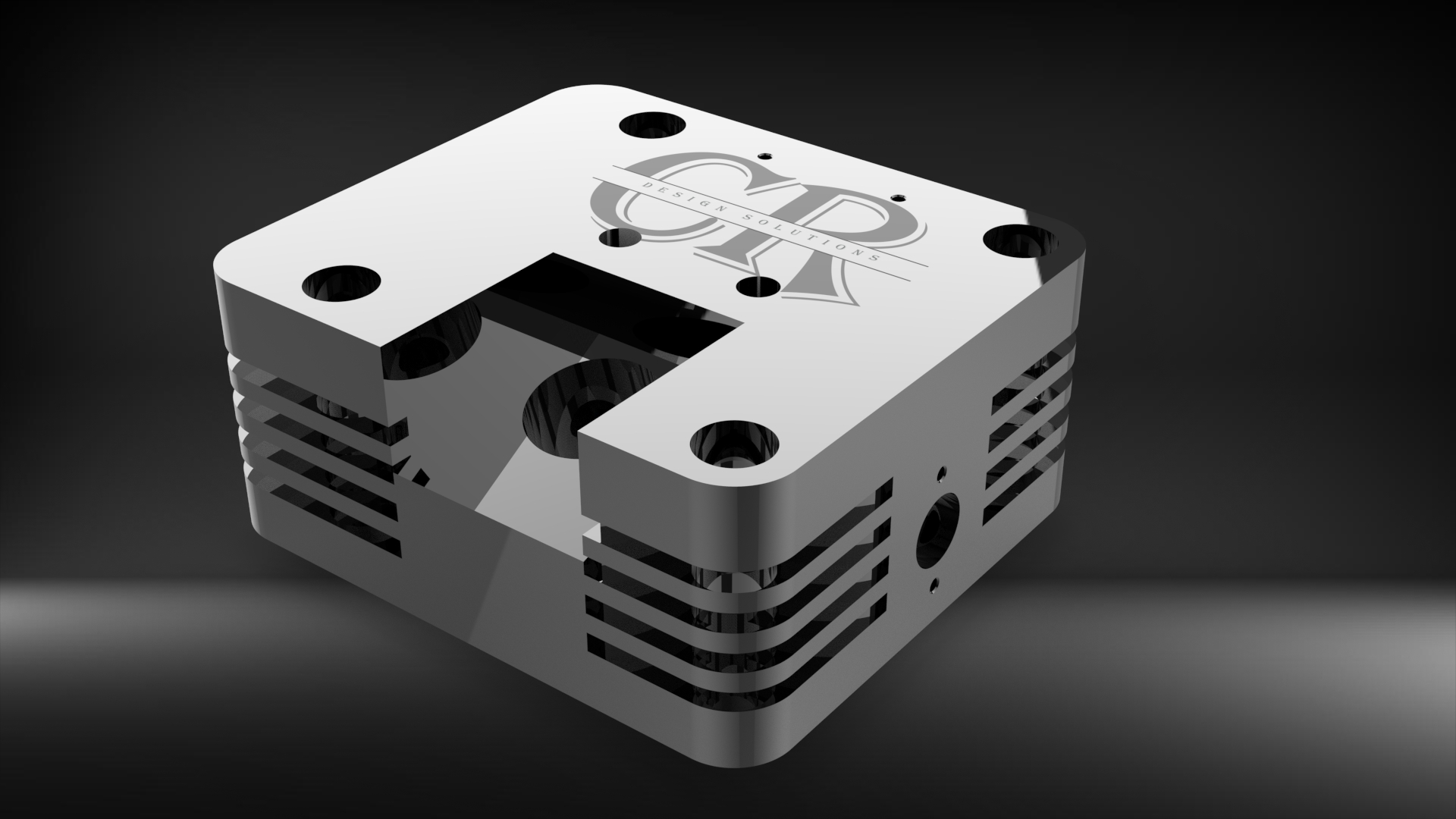

3D render images provided to the client for thier presentations and website. Rendering helps in actual visualization of the product .
Amazing to work with, super quick turn around time and almost instant response on messenger when asking a question. Seller took all my ask into consideration and the design is exactly what we wanted. Will definitely reach out and use this seller in the future.
The service was very fast and met my expectations. I loved the fact that I was able to discuss the project over a zoom call instead of trying to describe what I wanted over text.
It was a fairly complicated project that required multiple revisions. The final project came out much better than what my original idea was 10/10. Also the response time to messages was incredibly fast. Pretty sure he never sleeps.
